This guide is for an old version of Prism. Browse the latest version or update Prism

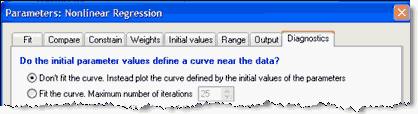

The top of the Diagnostics tab offers the choice to plot the curve defined by the initial values of the parameters.

When you make this choice, the top of the results will show "Don't fit".

This is a very useful option to use when diagnosing problem fits. But you won't learn anything by looking at the results page. Instead, look at the graph. If the curve goes near the points, then the initial values are OK. If the curve is far from the points, or follows a different shape altogether, then you know that there is a problem with the choice of model or initial values.

If you checked this option by mistake, go back to the Diagnostics tab and check the alternative choice ("Fit the curve.").
