A three way graphs is a Grouped graph set up to show data entered into Prism for analysis by three-way ANOVA. The entered data look like this. Note the two line column titles. These are essential both to properly label the data, but also to properly label the graph.

clip0077

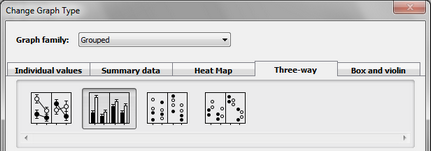

From the Change Graph Type dialog, choose the Three-way tab and one of the thumbnails.

clip0078

The graph looks like this.

clip0079

Note that the first line of the column titles in the data table become labels for the two halves of the graph, and the second line of the column title becomes the graph legend. The row titles become labels under the bars.
