There are two options to choose from in the Fill Color section, each of which will be discussed in its own section on this page:



One color for the entire graph

Variable



Note that these options operate similarly to the options for Size.



One color for the entire graph

Select a color and transparency value that will be applied to ALL symbols plotted on the graph.

Fill Color



Variable

Select a variable to define symbol color on the graph. This variable can be either categorical or continuous.



Categorical Variable

If choosing a categorical variable, each level of the selected categorical variable will be treated as its own group, and can be assigned its own Color and Transparency level. Additionally, multiple groups (multiple levels of the selected categorical variable) can be selected at once using the Global dropdown menu.

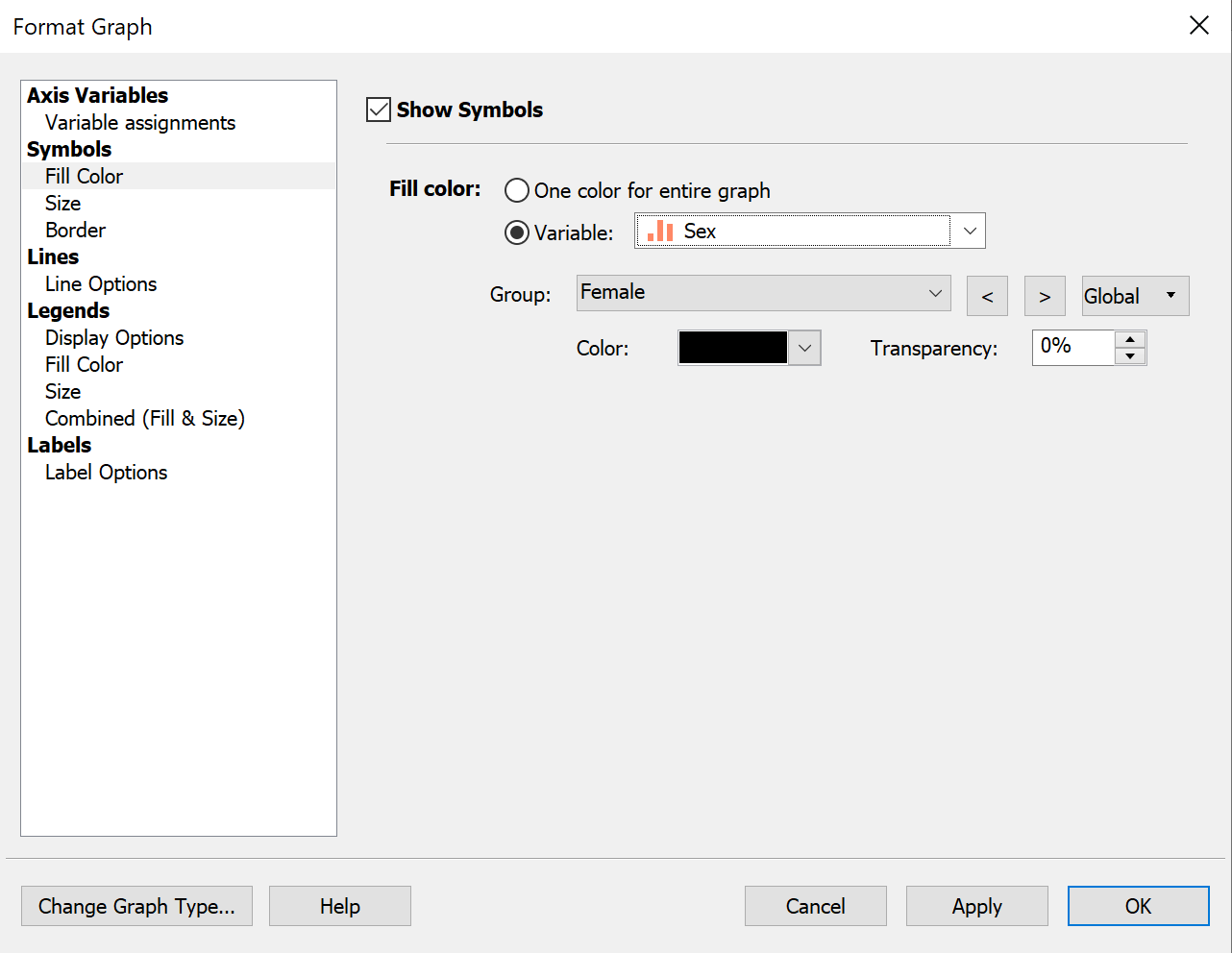

Fill Color Categorical





Continuous Variable

If choosing a continuous variable, a colormap must be chosen from the Colormap dropdown menu. You can choose from the built-in colormaps, or define your own using the “Single Gradient” or “Double Gradient” options in the Colormap dropdown menu. Each of these colormaps defines a continuous range of colors, and the color of each symbol on the graph will be determined by its value for the continuous variable assigned in the Variable dropdown menu. This process of color assignment is similar to what you may have seen in Heat Maps.

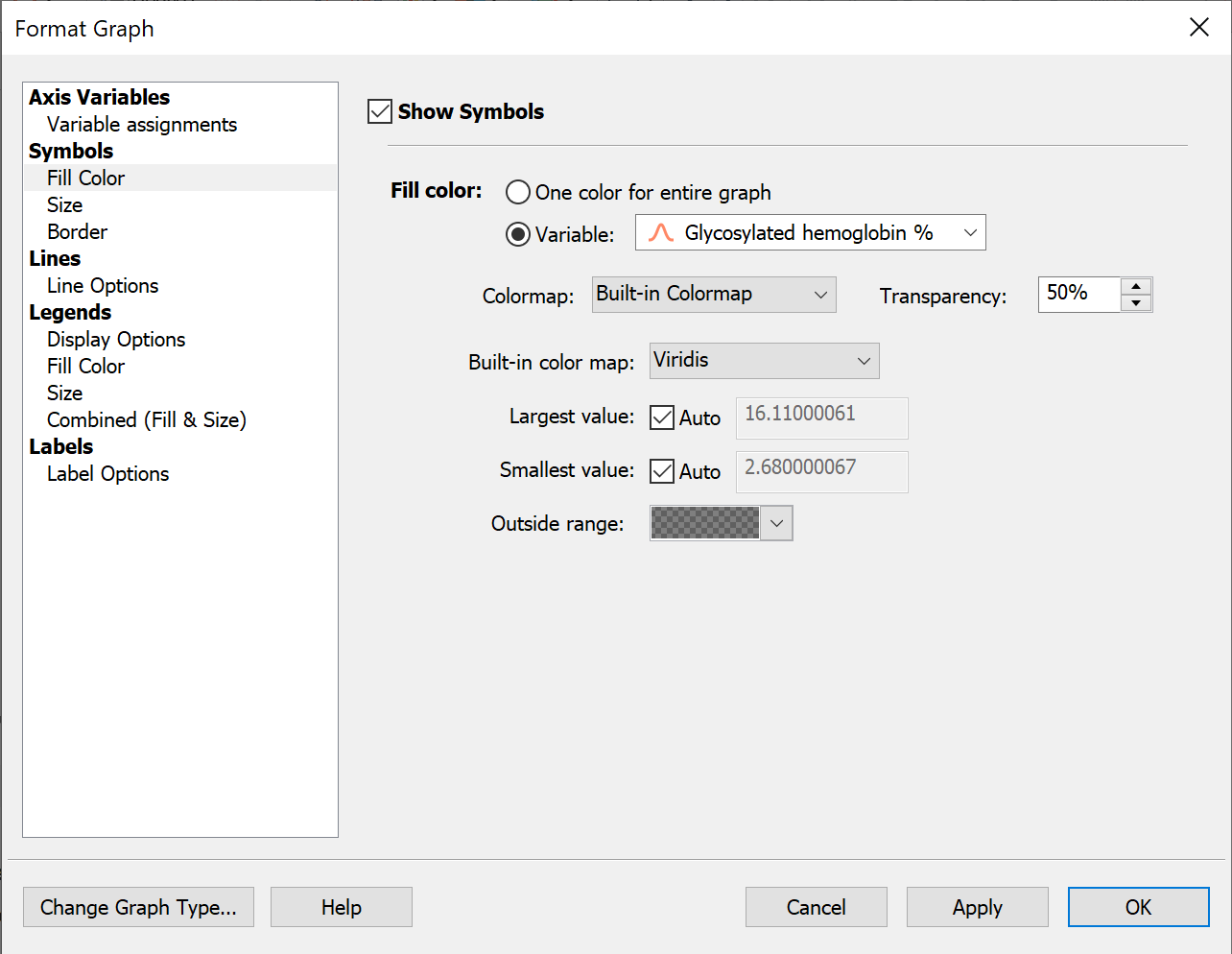

Fill Color Continuous



It’s also important to note that, by default, Prism will select appropriate numbers for the Largest value, Baseline value, and Smallest value. However, these can be entered manually by unchecking the Auto box beside each of these options and entering the desired value.



If the value for the continuous variable assigned to color lies outside the range defined by Largest value and Smallest value, there is an additional color dropdown that can be used to assign a specific color to these symbols.
